The ResQmax™ is a new generation line thrower specifically designed to deploy a line only, or an auto-inflating flotation sling and retrieval line to an otherwise inaccessible point in both land-based and maritime environments, providing an emergency response capability without putting the rescuer at risk.
- Utilizing a patented air-thrust launcher technology, the ResQmax™ is non-pyrotechnic, reusable, and refillable.
- Launcher housings are injection-molded from polycarbonate for durability and high impact resistance.
- Two manual back-up systems on the auto-inflating sling assure fail-safe inflation.
- 3,000 psi / 207 bar service pressure line projectiles.
The ResQmax™ line thrower comes in standard kits and can also be equipped with lines of specific strength and length to target end-user requirements. This line thrower is especially useful for rescues where a heavy line is required or long distances must be breached. Operational lines can be established with ease for a variety of applications including high or low angle rescue, construction projects, and ship-to-ship line deployment.
As a line thrower, the ResQmax™ can deliver a variety of line types, depending on the application, over distances up to 400 ft / 120 m.

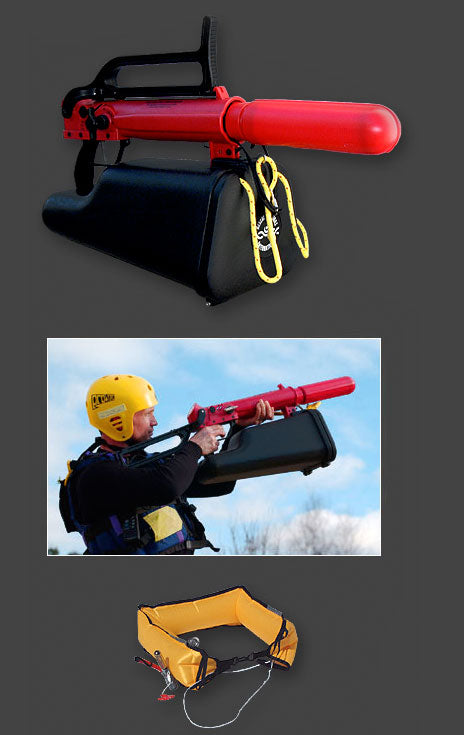

As a water-rescue device, it can deliver an auto-inflating flotation sling and retrieval line to a victim in the water over distances up to 300 ft / 92 m.
The safety mechanism on the launcher is "always on," resetting automatically when a projectile is inserted.
The projectile's "Push-Click" engagement allows easy reloading, even in the dark.
A pressure relief burst disk prevents unsafe pressure build-up that could result from exposure to extreme heat.
The patented nozzle valve permits any number of projectiles to be precharged and stored with the unit, allowing deployment of multiple projectiles in rapid succession.
Did you know?
The ResQmax™ is designed to meet the requirements of the NFPA Standard 1670 Standard Operations and Training for Technical Rescue.

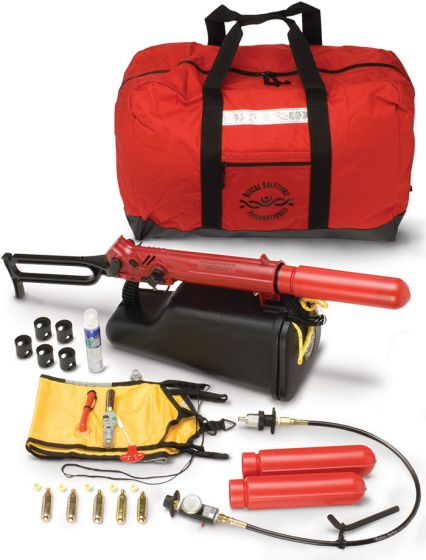

Kit 411 Contents
1 - Part #500 ResQmax Launcher - Red
2 - Part #300-S Streamline Projectile with 2 spare covers
1 - Part #805 500lb test 3mm Dacron Line (500ft / 152m) in Compact Line Container
1 - Part #808 1,100lb test 8mm Polyspectra Line (300ft / 92m) in Large Line Container
1 - Part #60402-S Streamline Nozzle Protector - 5 pack
1 - Part #714 O-ring Kit - 10-pack (various)
1 - Part #715 Corrosion Block 1 - Part #720 ResQmax Operations Manual
1 - Part #725 ResQmax Training CD
1 - Select Streamline Filler Hose (see adapter options above)
1 - Part #907 Cordura Kit Carry Bag - Red
