The original winch.

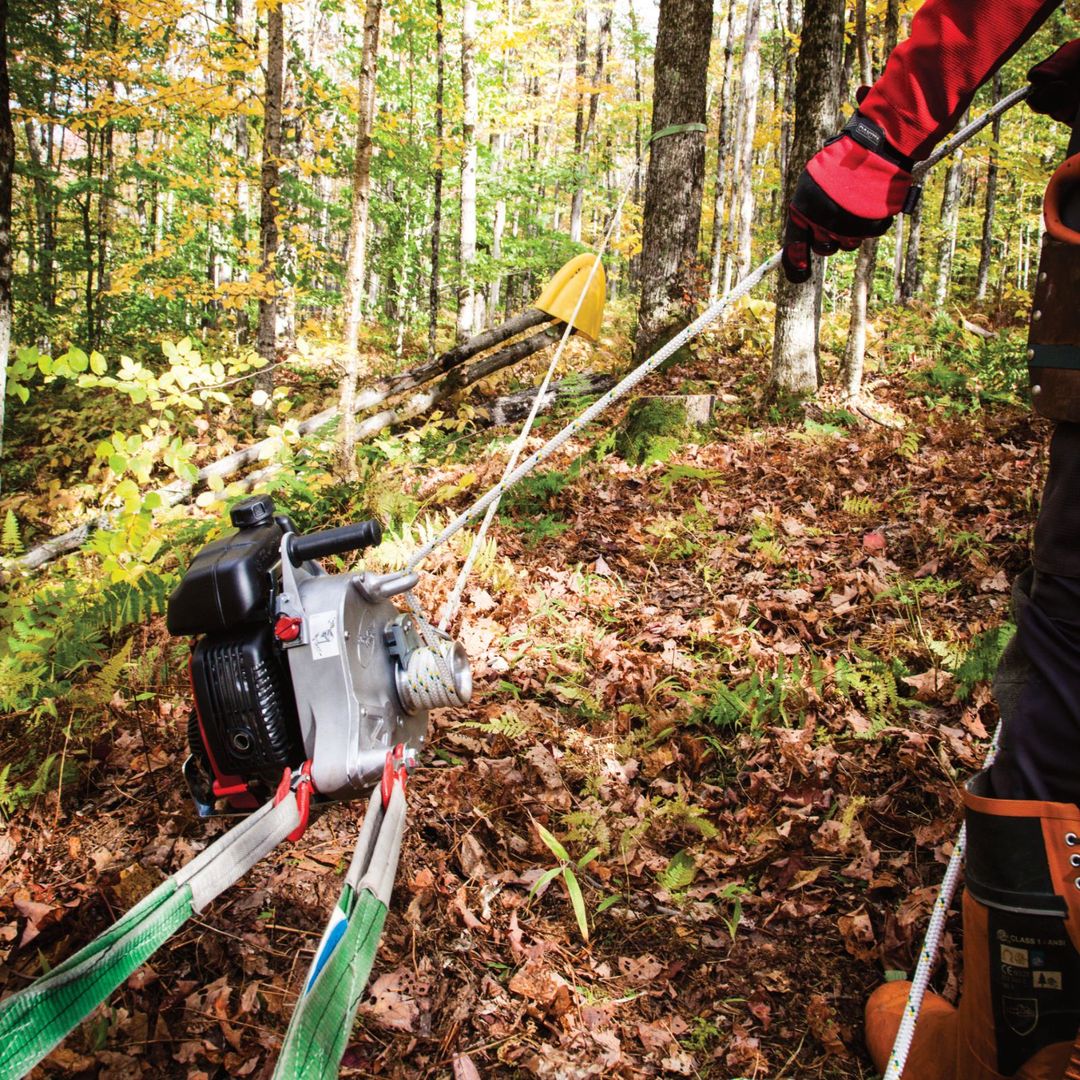

Whether it's for pulling trees out of the woods, getting a stuck vehicle out, or any other purpose, the inexhaustible PCW5000 will be there to help you.
Its robust design makes it the Portable Winch benchmark for quality and durability: ingenious products, offering durable power without compromise, anywhere. The Honda GXH50 engine mounted on this winch is an industrial grade engine that will provide performance for several hundred hours. The capstan winch concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective, and safe way. In addition, the PCW5000 offers two speed options thanks to its interchangeable capstan drums. You can choose the one that will best suit your task. The 2-1/4'' diameter drum, standard on the winch, delivers all the power with a pulling speed of 40 feet per minute. For more speed, the optional 3-3/8'' drum (PCA-1100) will give you 50% more speed, or 60 feet per minute. A wide range of complementary accessories has been specifically designed to meet your needs.
The PCW5000 develops a remarkable pulling force of 2,200 lb without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could pull up to 11,000 lb!
|Motor/Engine||Honda GXH50 4-stroke
1.6 kW - 2.1 HP @ 7,000 tr/min
|Powered by||Unleaded gasoline, 86 octane or higher|
||Direct drive (no clutch)
|Rope Retention System||No|
|Drum turns when motor/engine is idling||Yes|
|Standard drum (single line / double line)||Ø 2-1/4'' (57 mm): 2,200 lb / 4,400 lb|
|Optional drum (single line / double line)||Ø 3-3/8'' (85 mm): 1,600 lb / 3,200 lb|
|Standard drum (single line / double line)||Not designed for lifting|
|Optional drum (single line / double line)||---|
|Standard drum||Ø 2-1/4'' (57 mm): 40'/min|
|Optional drum||Ø 3-3/8'' (85 mm): 60'/min|
|Dimensions (overall)||14-1/4'' x 14-5/8'' x 14-1/4''|
|Gearbox||Aluminum alloy. Heat treated 3-stage spur gears. Mounted on ball bearings. Oil bath lubrication.|
|Brake||Anti-reversing roller clutch bearing|
|Rope (not included)
||Low stretch double braided polyester|
|Minimum Breaking Strength (MBS)||4,850 lb|
|Minimum diameter||Ø 3/8'' (10 mm)|
|Maximum diameter||Ø 1/2'' (13 mm)|
|Recommended diameter||Ø 1/2'' (12 mm)|
||Polyester sling - 2-1/2'' x 6-1/2'|
|Warranty||Once purchased, register your winch online and get 1 additional year of warranty for FREE!|
|Private use||5 years|
|Commercial use||1 year|
|Motor/Engine||Honda International Warranty|
|User Guide||Download user guide|
