PCH2000 Gas-Powered Pulling/Lifting Winch GX160

PCH2000 Gas-Powered Pulling/Lifting Winch GX160

Regular price $3,699.00 USD
Regular price Sale price $3,699.00 USD
Sale Sold out
sku: PCH2000
Shipping calculated at checkout.
View full details


DESCRIPTION

The Almighty.
The PCH2000 is the most powerful winch available; performing the most demanding tasks smoothly.

Design

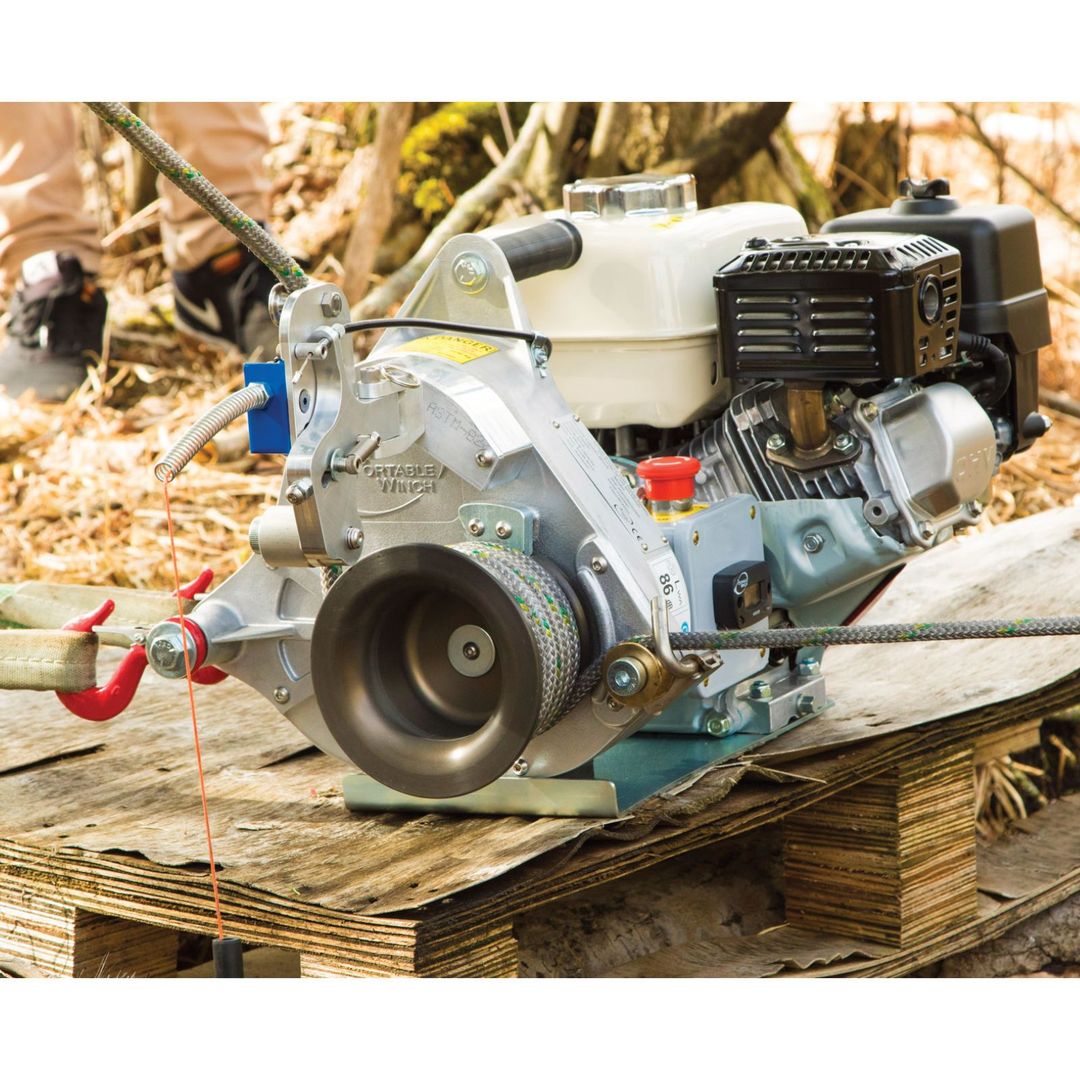

The PCH2000 has a capstan drum that allows to maintain a constant force over an unlimited length of rope at a speed of 66 feet per minute. It is also the first model to offer a 4-1/4'' anodized drum. By oversizing the drum, the friction surface is expanded and it results in better load control. Through anodic oxidation treatment, the PCH2000’s drum features better wear resistance and does not increase the rope conductivity. These attributes make it ideal for its assignment to tasks around and on electrical structures!

Developed for lifting, the PCH series benefits from its own unique clutch and rope Progressive Capture System (PCS). Once the rope is inserted into the grabbing system, the operator activates the clutch and initiates the movement by pulling the rope horizontally. At any time, the operator can decide to stop lifting and hold the load in mid-air. It is also possible to pull on the handle of the cord attached to the PCS to  disengage it and lower the load, while controlling the main rope in the descent.

Performance
Powered by the Honda GX160 cc engine, the PCH2000 features an unprecedented pulling power of 2,530 lb and a lifting capacity of 990 lb in a single line. Of course, a block and tackle system will allow you to increase its capacity!

PCH2000
Series Industrial
Designed in 2016

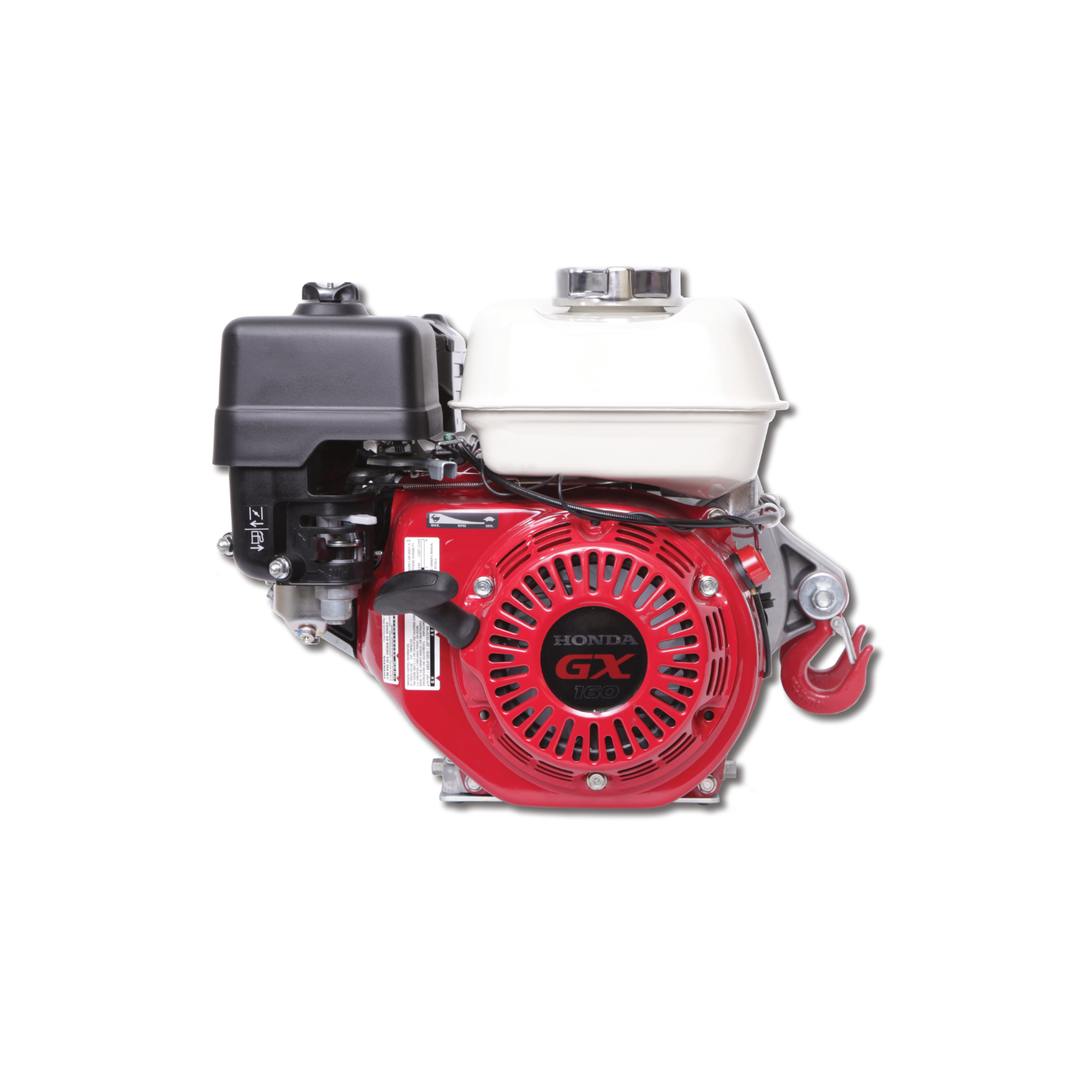

Motor/Engine Honda GX160 4-stroke
Air-cooled
3.6 kW - 4.8 HP @ 3600 tr/min
Powered by Unleaded gasoline, 86 octane or higher
Drive/Clutch
Centrifugal
Rope Retention System Progressive Capture System (PCS)
Drum turns when motor/engine is idling No
Pulling Capacity
   Standard drum (single line / double line) Ø 4-1/4'' (108 mm): 2,530 lb / 5,060 lb
   Optional drum (single line / double line) No optional drum
Lifting Capacity
   Standard drum (single line / double line) Ø 4-1/4'' (108 mm): 990 lb / 1,980 lb
   Optional drum (single line / double line) No optional drum
Speed
     Standard drum Ø 4-1/4'' (108 mm): 66'/min
     Optional drum No optional drum
Weight 76 lbs
Dimensions (overall) 19'' x 14-5/8'' x 14-1/4''
Gearbox
Aluminum alloy. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.
 Gear ratio 53:1
 Brake Unidirectional double bearing
Rope (not included)
Low stretch double braided polyester
 Length Unlimited
    Minimum Breaking Strength (MBS)
7,275 lb
 Minimum diameter Ø 1/2'' (12 mm)
 Maximum diameter Ø 1/2'' (13 mm)
 Recommended diameter Ø 1/2'' (12 mm)
 For lifting Ø 1/2'' (12 mm) with eye splice and thimble
Included
Polyester sling - 2-1/2'' x 6-1/2'
Warranty Once purchased, register your winch online and get 1 additional year of warranty for FREE!
 Private use 2 years
 Commercial use 1 year
 Motor/Engine Honda International Warranty
Certification(s)

CE
Lifting Classification (ISO): M3

User Guide Download user guide
