Lifting in complete safety

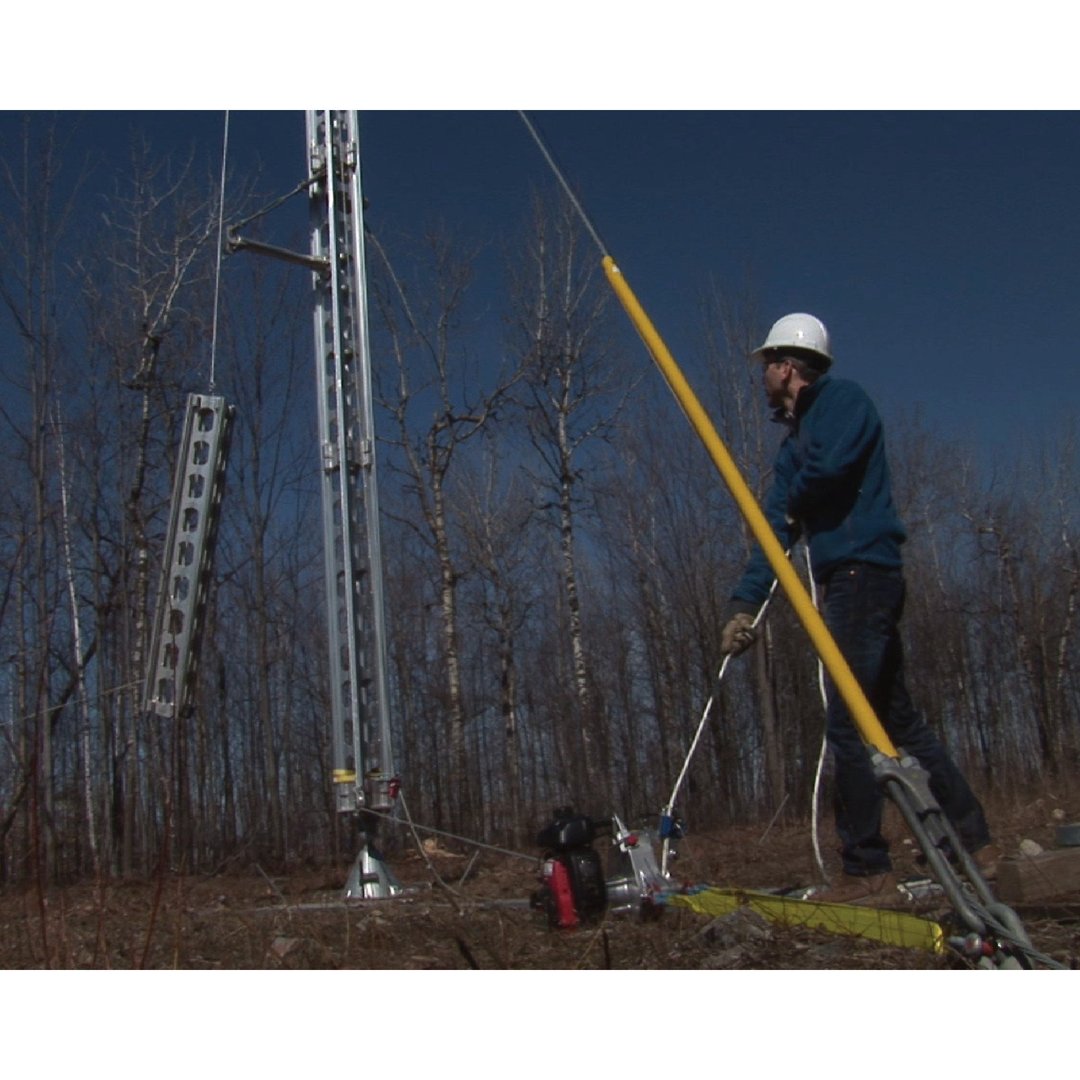

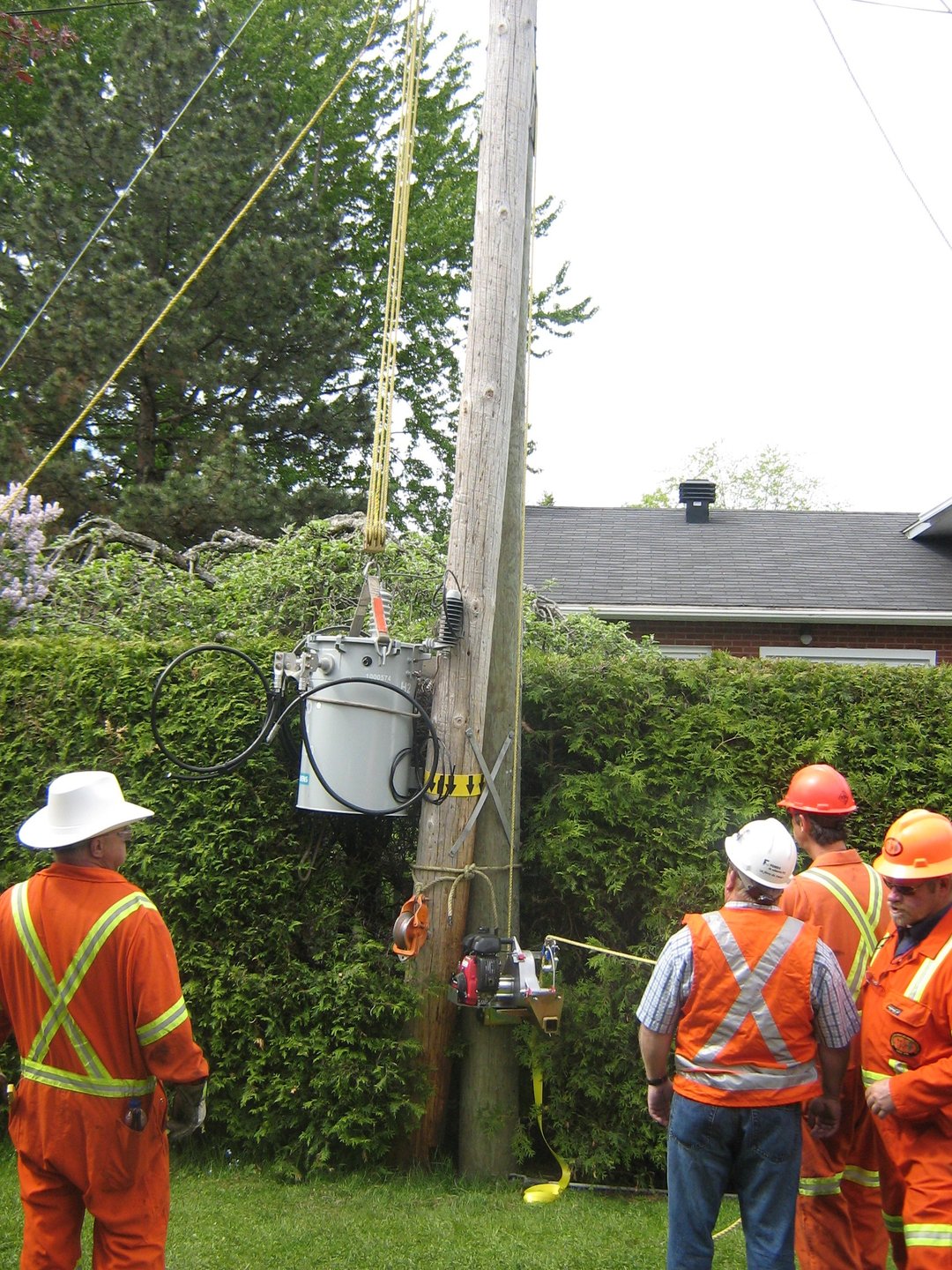

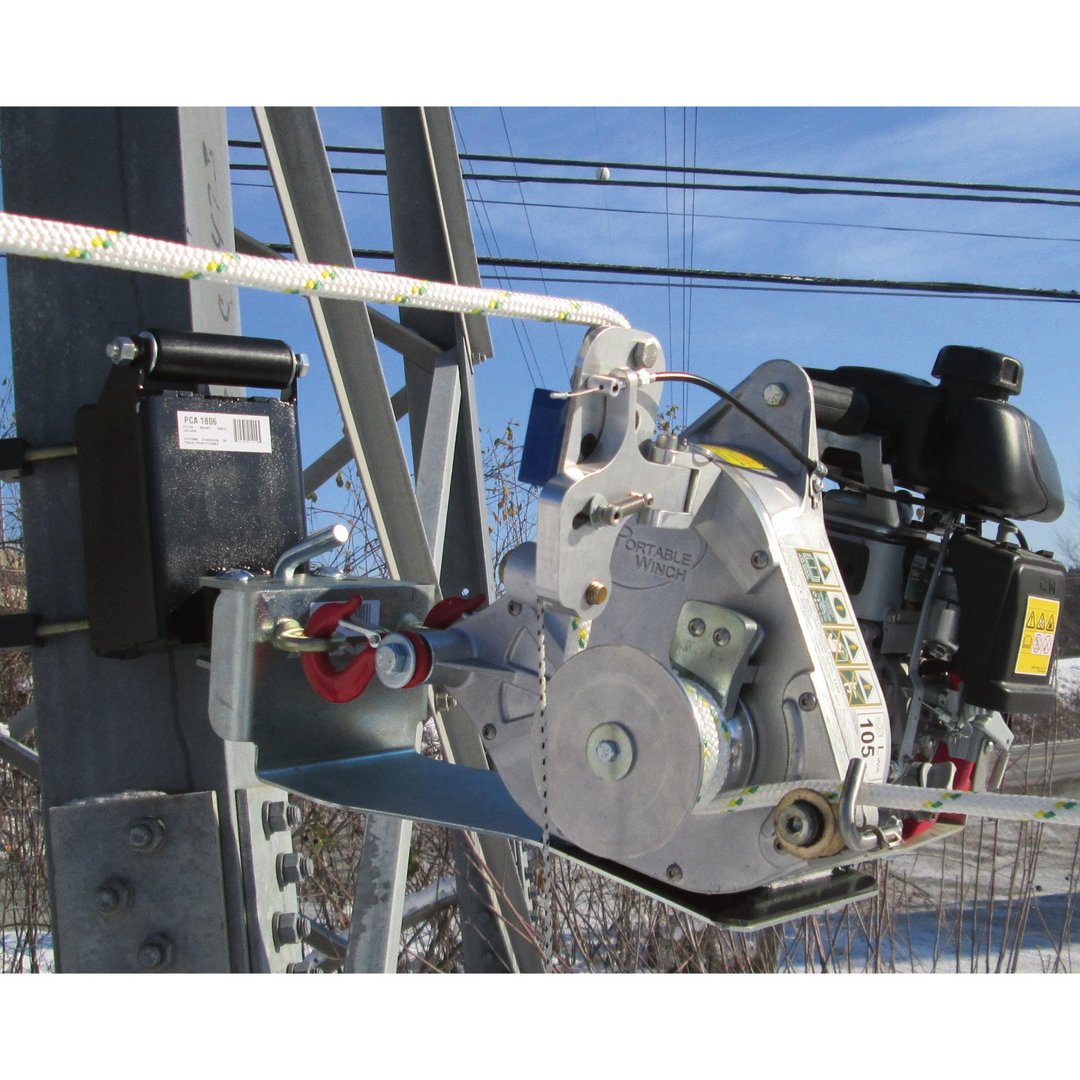

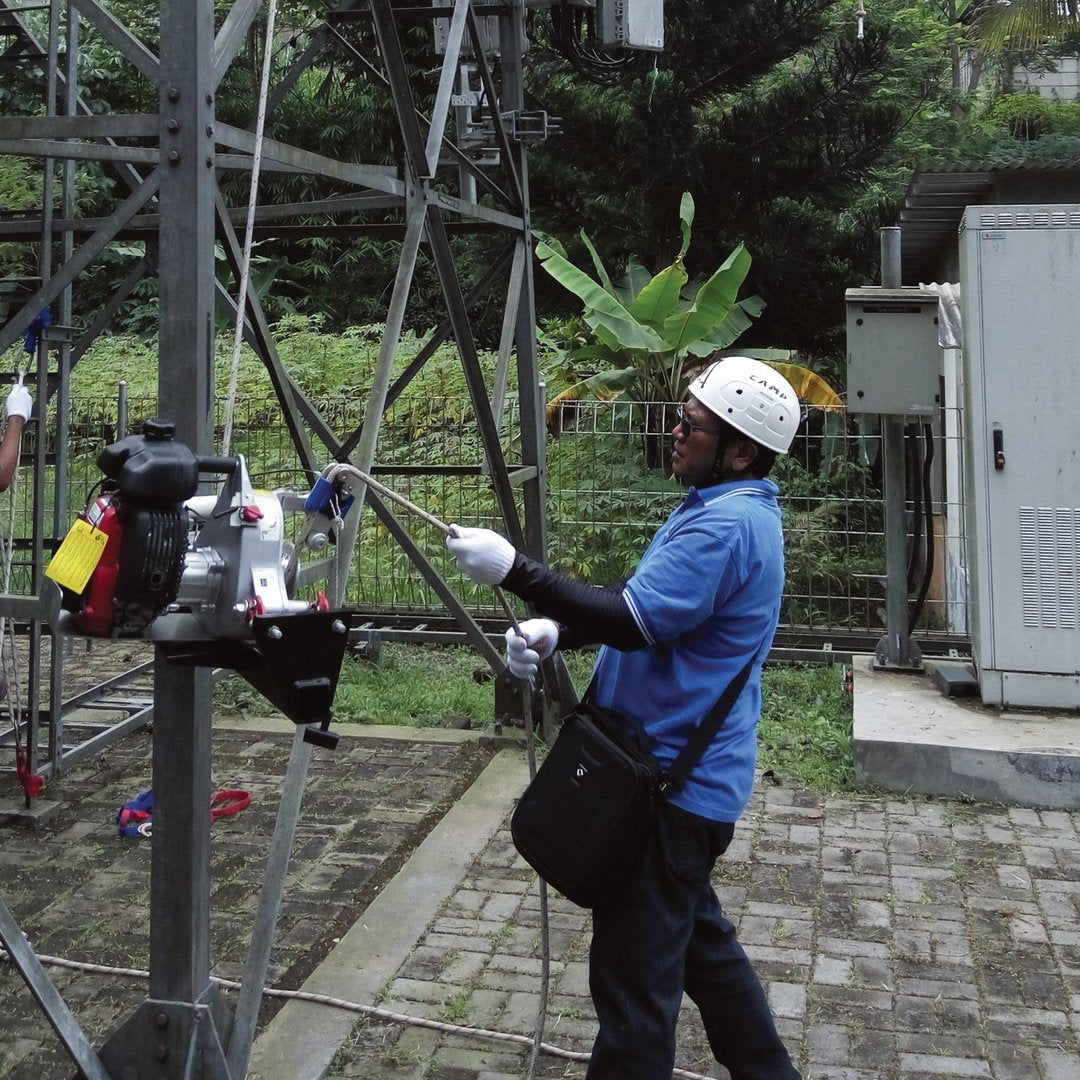

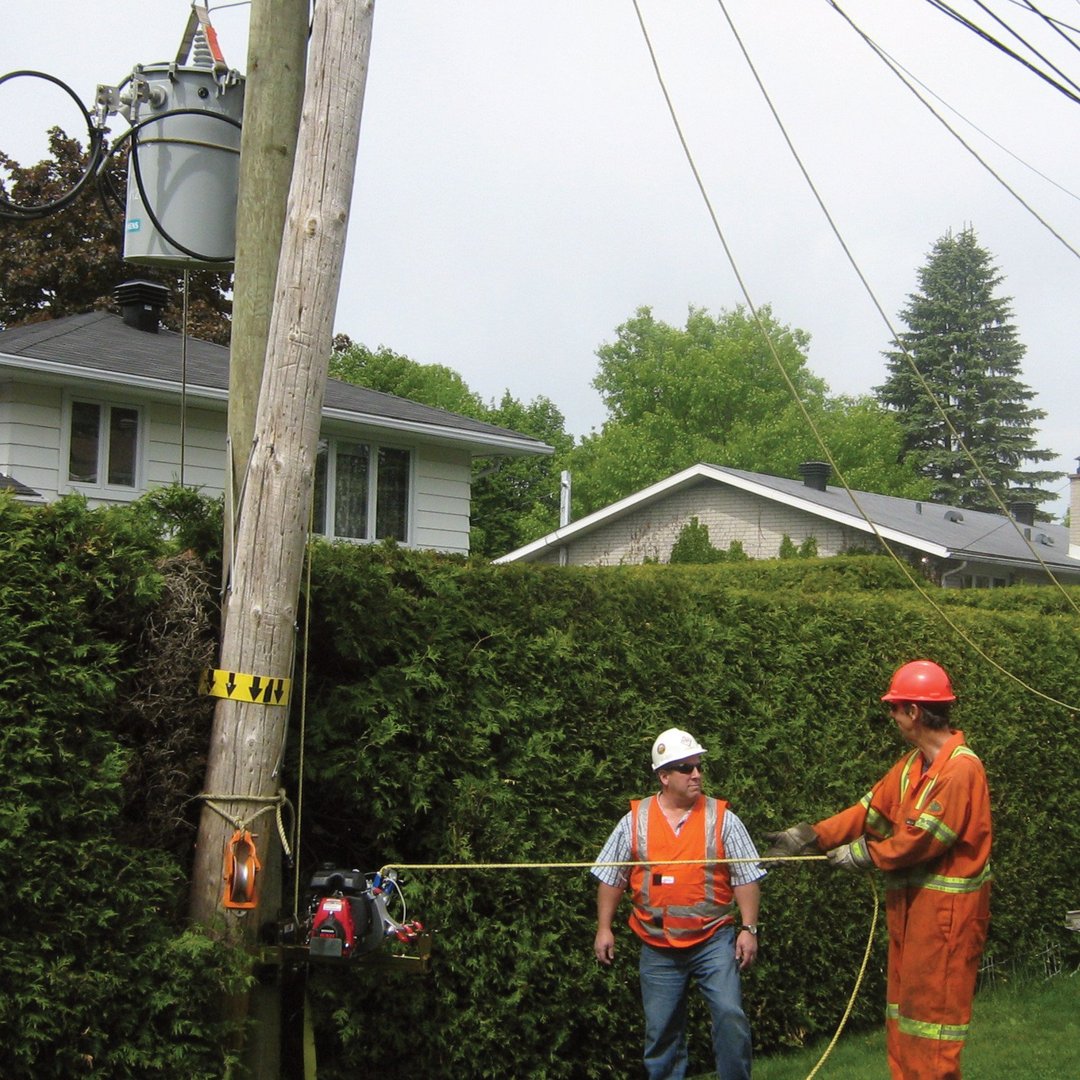

Specifically designed for the lifting needs of the industrial sector, the PCH1000 features the Progressive Capture System (PCS), which is essential for lifting, lowering and holding loads safely. Whether for telecommunications structures assembly, for lifting various equipment on a site or simply for pulling loads, the PCH1000 is versatile and safe. In addition, a wide variety of anchoring systems are available so you can easily do your setup.
Located between the engine and the gearbox, the clutch system ensures that the capstan drum does not rotate when the engine idles. Once the rope is inserted into the PCS, the operator activates the clutch and initiates the movement simply by pulling on the rope horizontally. The rope grabbing system prevents the rope from slipping on the drum and holds the load when the rope is released. The winch can also be used to lower a load by disengaging the Progressive Capture System. To do this, the operator should simply pull the handle of the grabbing system cord and control the main rope during the descent.

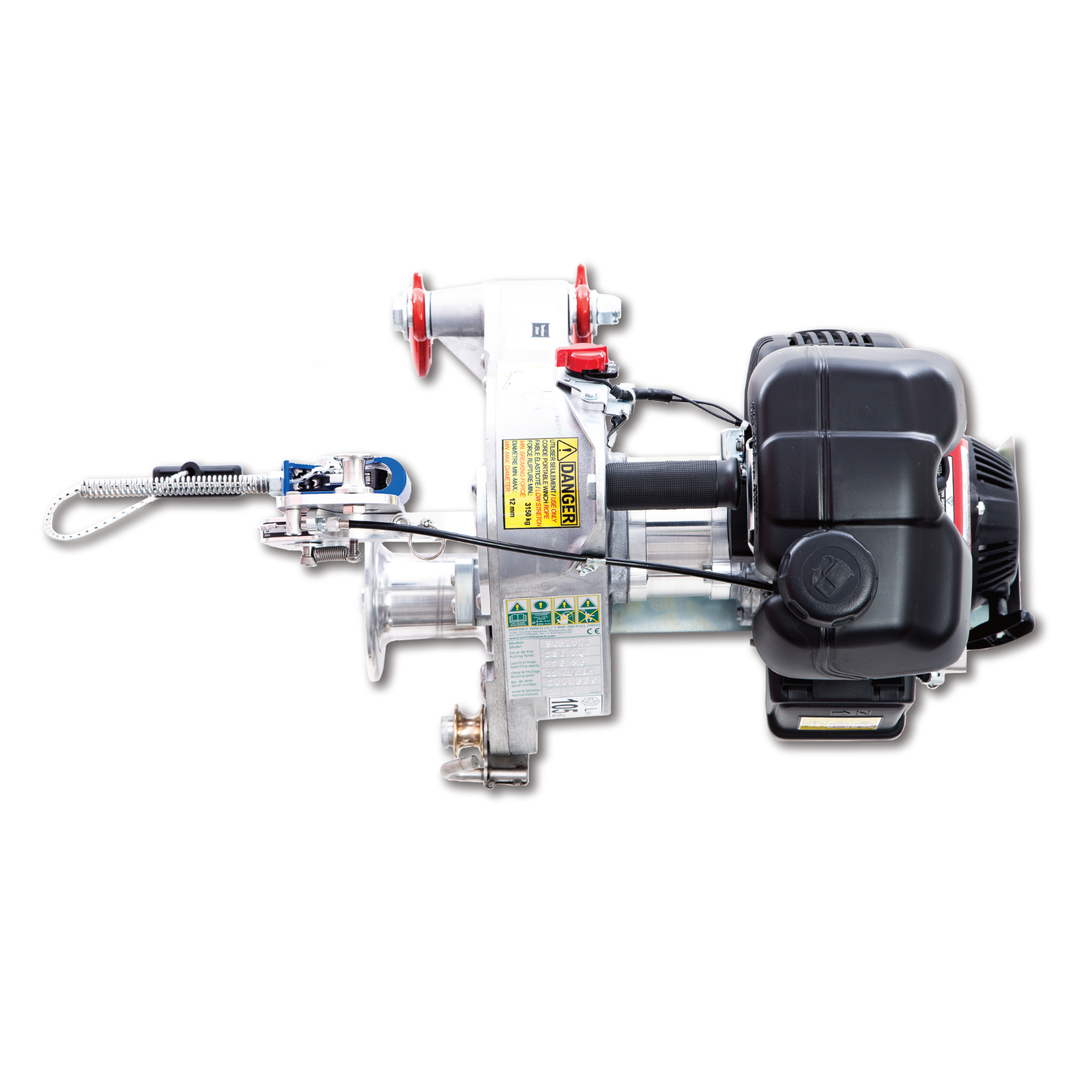

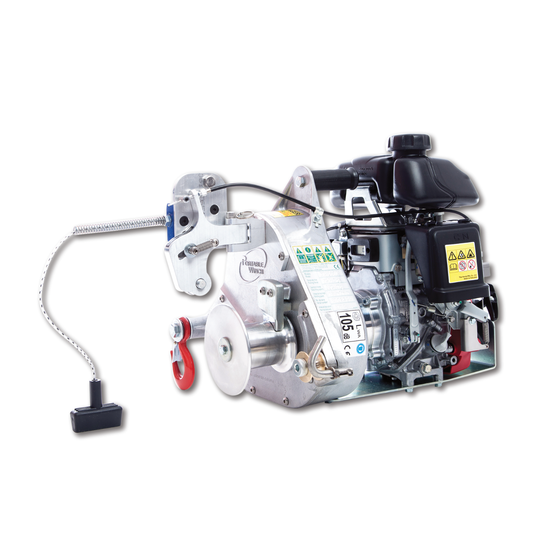

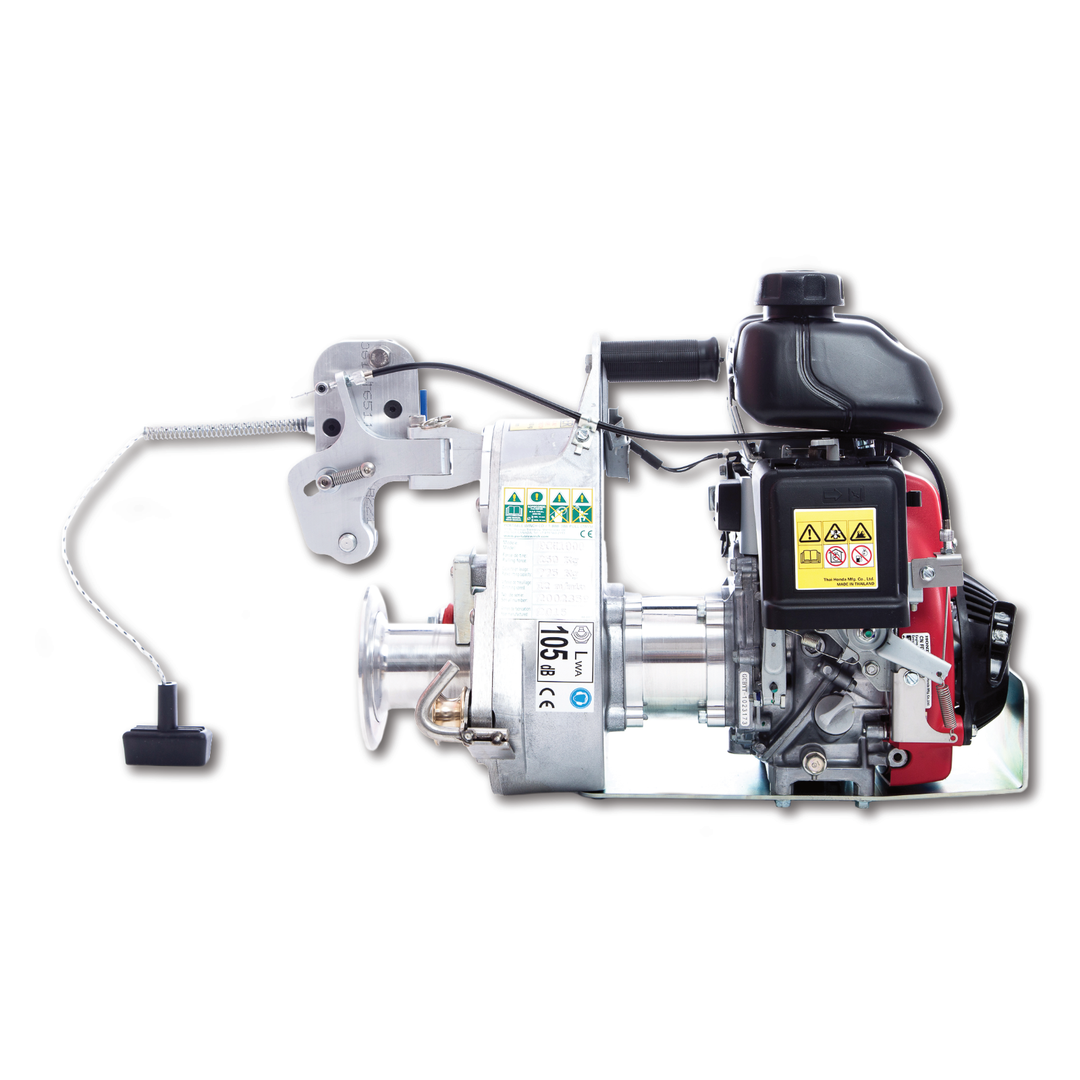

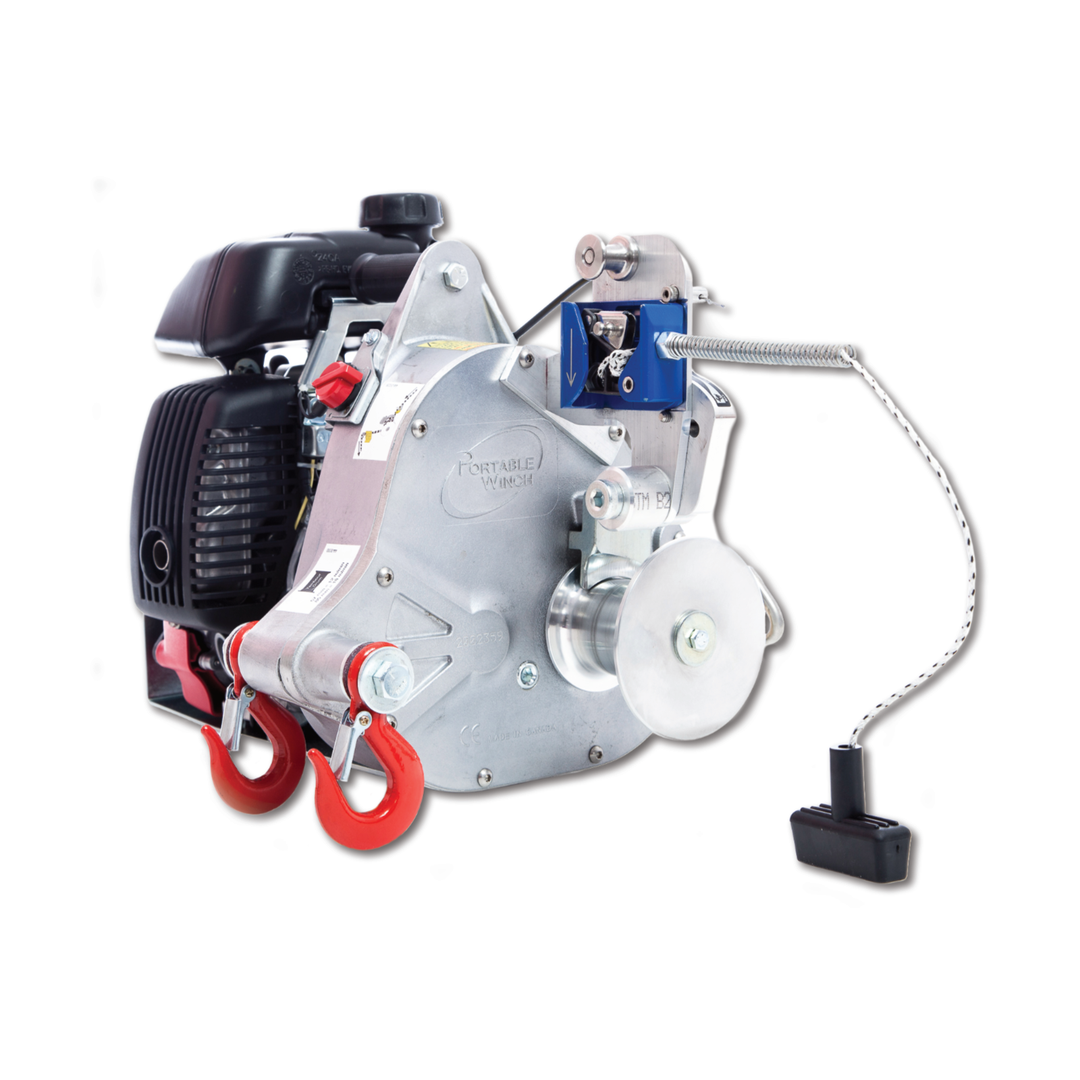

Equipped with the 4-stroke GXH50 Honda engine, the PCH1000 develops a pulling force of 1,710 lb and offers a lifting capacity of 550 lb in a single line setup. Of course, a block and tackle system will allow you to increase its capacity!
Honda GXH50 4-stroke
1.6 kW - 2.1 HP @ 7,000 tr/min
|Powered by||Unleaded gasoline, 86 octane or higher
|Rope Retention System||Progressive capture system (PCS)|
|Drum turns when motor/engine is idling||No|
|Standard drum (single line / double line)||Ø 2-1/4'' (57 mm): 1,710 lb / 3,420 lb|
|Optional drum (single line / double line)||Ø 3-3/8'' (85 mm): 1,190 lb / 2,380 lb|
|Standard drum (single line / double line)||Ø 2-1/4'' (57 mm): 550 lb / 1,100 lb|
|Optional drum (single line / double line)||Ø 3-3/8'' (85 mm): 385 lb / 770 lb|
|Standard drum||Ø 2-1/4'' (57 mm): 40'/min|
|Optional drum||Ø 3-3/8'' (85 mm): 60'/min|
|Dimensions (overall)||19-7/8'' x 14-5/8'' x 14-1/4''
||Aluminum alloy. Heat treated 3-stage spur gears. Shafts mounted on ball bearings. Oil bath lubrication.|
|Brake||Anti-reversing roller clutch bearing|
|Rope (not included)
||Low stretch double braided polyester|
| Minimum Breaking Strength (MBS)
|Minimum diameter||Ø 1/2'' (12 mm)|
|Maximum diameter||Ø 1/2'' (13 mm)|
|Recommended diameter||Ø 1/2'' (12 mm)|
|For lifting||Ø 1/2'' (12 mm) with eye splice and thimble|
||Polyester sling - 2-1/2'' x 6-1/2'|
|Warranty||Once purchased, register your winch online and get 1 additional year of warranty for FREE!|
|Private use||2 years|
|Commercial use||1 year|
|Motor/Engine||Honda International Warranty|
|User Guide||Download user guide|
