STRIKER VIVID 5CV
This ice fishing bundle includes the STRIKER Vivid 5cv fishfinder and everything you need for a great day on the ice.

ICE-FISHING TRANSDUCER
The GT8HW-IF transducer with Garmin CHIRP traditional sonar offers adjustable beam angles and crystal-clear images with remarkable target separation.

BUILT-IN FLASHER
See your jig or weighted bait, as well as the depth of fish swimming into the sonar beam. You can even watch your jig being lifted or dropped — and see whether fish are moving toward or away from it.

WAYPOINT MARKING
High-sensitivity GPS helps you find and mark your favorite hot spots — plus create routes and view your boat’s speed for year-round use.

QUICKDRAW CONTOURS
Nobody knows the waters you fish better than you. STRIKER Vivid 5cv can now store up to 2 million acres of maps with 1’ contours.

ACCESS OPEN WATER
An optional all-season kit adds the GT20-TM transducer, so you can use your STRIKER Vivid 5cv all year — with high-contrast color palettes that make it easier to see what’s beneath the surface.

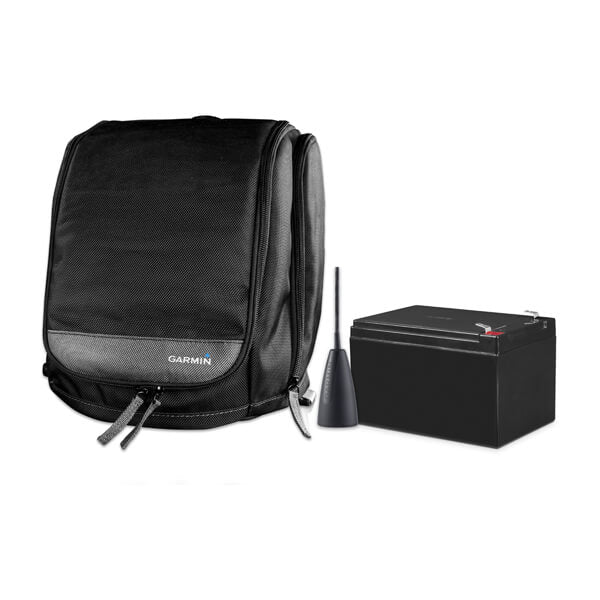

CARRYING CASE
Take your bundle along with a rugged, portable carrying case that lets you easily transport it from hole to hole and season to season.
IN THE BOX
- STRIKER Vivid 5cv fishfinder
- GT8HW-IF transducer
- Power/data cable
- Tilt/swivel mount
- Hardware
- Garmin bumper sticker
- Documentation
- Portable fishing kit
- Bag with handle
- Foam float
- Rechargeable battery
- Battery charger
Physical & Performance
Display resolution | 800 x 480 pixels |
Physical dimensions | 7.4’’ x 4.5’’ x 2.1’’ (18.8 x 11.6 x 5.4 cm) |
Water rating | IPX7 |
Weight |
Unassembled kit with device: 8.5 lb (3.9 kg) |
Display type | WVGA color |
Features
Fish Symbol ID (helps identify fish targets) | Yes |
Split-screen zoom | Yes |
A-scope (real time display of fish passing through transducer beam) | Yes |
Adjustable depth line (measures depth of underwater objects) | Yes |
Audible alarms | Yes |
AutoGain Technology (minimizes clutter, maximizes targets) | Yes |
Additional |
|
Water temperature sensor included | No |
Frequencies supported |
Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü 260/455/800 kHz |
Ultrascroll® (displays fish targets at higher boat speeds) | Yes |
