Revolutionary real-time sonar pairs with a large ECHOMAP UHD 93sv combo touchscreen display, allowing you to see up to 200’ in any direction.
TWO MODES, ONE TRANSDUCER
Adapt your fishing technique with a Panoptix LiveScope system, which offers 2 scanning sonar modes. The bundle also includes a lithium battery, charger and swivel pole mount.
LiveScope Forward sonar shows up to 200’ all around you and below the ice, so you can locate schools of fish and know where to drill the next hole.
LiveScope Down sonar shows moving sonar images of what is below the ice, so you can watch fish respond to your jig.
LAKEVÜ G3 MAPS
The unit comes preloaded with LakeVü g3 maps with integrated Navionics® data, covering more than 18,000 lakes in the U.S.
The built-in flasher provides accurate jig and fish detection as they swim into the sonar beam.
You can create custom pages that combine Panoptix™ sonar, flasher and map on your display.
Fish even longer with a lightweight lithium battery that won’t weigh you down on the ice.

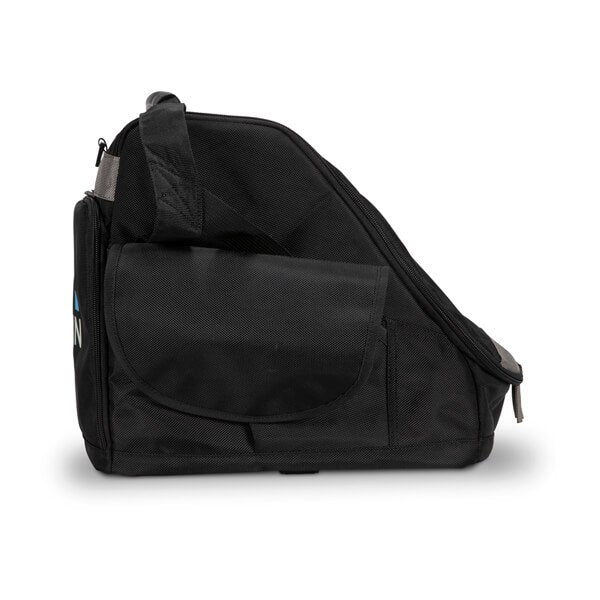

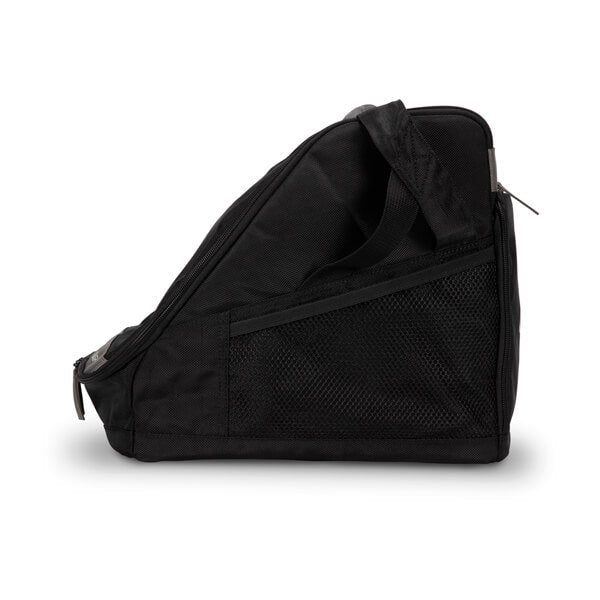

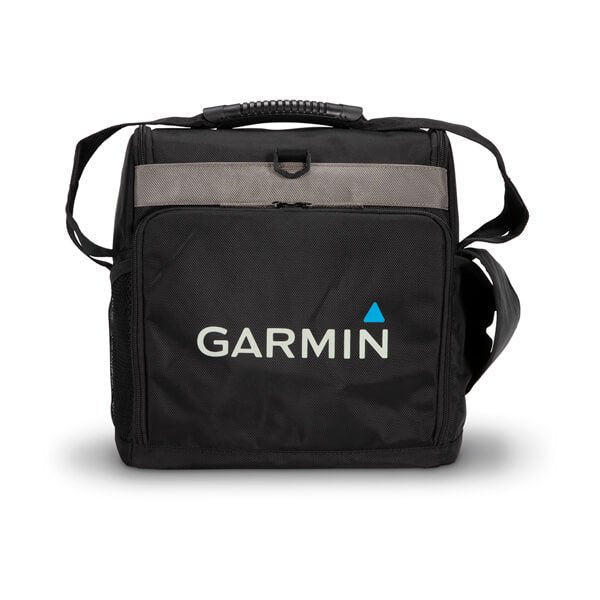

Where you take your bundle is up to you. But the rugged, portable carrying case lets you easily transport it from hole to hole and season to season.
Physical & Performance
|Display Size||7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal)|
|Display resolution||800 x 480 pixels|
|Dimension||13.8" × 12.2" × 13.0" (35 × 31 × 33 cm)|
19.4 lb (8.8 kg)
|Display Type||WVGA display|
Maps & Navigation
|Navigationigation Accepts Data Cards||
1 microSD™ card; 32 GB maximum card size
|NMEA 0183 Compatible||Yes|
|Connections NMEA0183 Input Ports||
Bag size: Extra Large (XL)
Included transducer: Panoptix LiveScope System
Included battery: 16.5 Ahr lithium-ion battery
Includes LVS32-IF with silicon cable
Battery: 3.4 lbs (weight); 11.4 hrs (runtime (0°C 100% backlight)
|NMEA 2000 Compatible||Yes|
|Connections Garmin Marine Network Ports||
1 Panoptix™ port
IN THE BOX:
- ECHOMAP™ UHD 93sv chartplotter
- Panoptix™ LiveScope System
- Panoptix ice fishing mount
- Tilt/swivel mount
- Power cable
- Portable fishing kit
- Bag with handle
- Lithium-ion battery
- Battery charger
